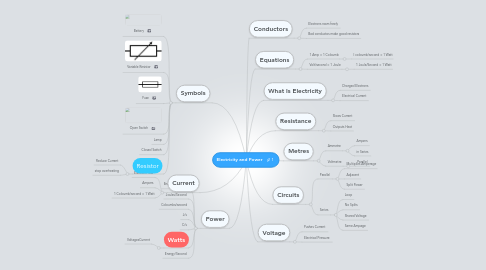

Electricity and Power by Mind Map: Electricity and Power

1. Resistance

1.1. Slows Current

1.2. Outputs Heat

2. Circuits

2.1. Parallel

2.1.1. Multiplies Amperage

2.1.2. Adjacent

2.1.3. Split Power

2.2. Series

2.2.1. Loop

2.2.2. No Splits

2.2.3. Shared Voltage

2.2.4. Same Ampage

3. Power

3.1. Energy in Action

3.2. Joules/Second

3.3. Coloumbs/second

3.4. J/s

3.5. C/s

3.6. Watts

3.6.1. VoltagexCurrent

3.7. Energy/Second

4. Metres

4.1. Ammetre

4.1.1. Ampers

4.1.2. in Series

4.2. Voltmetre

4.2.1. Parallel

5. Voltage

5.1. Pushes Current

5.2. Electrical Pressure

6. Current

6.1. Electron Flow

6.2. Ampers

6.3. 1 Coloumb/second = 1 Watt

7. Symbols

7.1. Battery

7.2. Variable Resistor

7.3. Fuse

7.4. Open Switch

7.5. Lamp

7.6. Closed Switch

7.7. Resistor

7.7.1. Reduce Current

7.7.2. stop overheating

8. What Is Electricity

8.1. Charged Electrons

8.2. Electrical Current

9. Conductors

9.1. Electrons roam freely

9.2. Bad conductos make good resistors

10. Equations

10.1. 1 Amp = 1 Coloumb

10.1.1. I coloumb/second = 1 Watt

10.2. Volt/second = 1 Joule

10.2.1. 1 Joule/Second = 1 Watt
