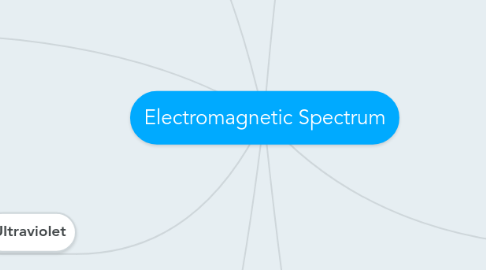

Electromagnetic Spectrum by Mind Map: Electromagnetic Spectrum

1. Radiowaves

1.1. Longest Wave Length

1.2. Characteristics

1.2.1. Wavelength 10−3 to 105 meters

1.2.2. Frequency 1010 to 104 Hertz

1.2.3. Energy 10−5 Electron Volts

1.2.4. Radio Spectrum

1.2.4.1. Super High Frequencies(SHF) 3 - 30GHz Ultra High Frequencies (UHF) 0.3 - 3GHz Very High Frequencies (VHF) 30 - 300MHz High Frequencies (HF) 3 - 30MHz Medium Frequencies (MF) 0.3 - 3MHz Low Frequencies (UF) 30 - 300kHz Very Low Frequencies (VLF) 3 - 30kHZ GHz = Giga Hertz = 109 Hertz MHz = Mega Hertz = 106 Hertz kHz = Kilo Hertz = 103 Hertz

1.3. Description

1.3.1. Radio waves are produced over a large range of frequencies thus like light have their own spectrum. This radio spectrum is divided into radio frequency bands. The high frequency short wavelength band as discussed earlier make up the microwave category of the electromagnetic spectrum these are known as Ultra High Frequencies (UHF). The other frequency bands are Very High Frequencies (VHF), High Frequencies (HF), Medium Frequencies (MF) Low Frequencies (LF) and Very Low Frequencies (VLF).

1.4. Uses

1.4.1. Radio waves are used in communication. Radio waves are not strongly absorbed by the atmosphere and can therefore travel long distances. Radio waves make use of the ionosphere a region of the atmosphere about 100km above the Earth’s surface and approximately 300km thick. In the ionosphere the atmosphere is partially ionised by the action of ultraviolet radiations from the sunlight. Radio waves are bent and reflected back towards the Earth by the ionosphere. This bouncing off the ionosphere and the Earth’s surface may occur repeatedly allowing radio waves to travel long distances around the Earth.

2. Microwaves

2.1. Characteristics

2.1.1. Wavelength 10−3 meters

2.1.2. Frequency 1010 Hertz

2.1.3. Energy 10−4 Electron Volts

2.2. Description

2.2.1. Microwaves are categorised as radio waves. They have the shortest wavelengths of all the radio waves. Microwaves are non ionising radiations. Their frequencies are a lot lower than those of gamma rays and x-rays and the energy of their photons is considerably lesser. They therefore do not have the damaging properties of ionising radiations. However, in sufficient intensity they can cause molecules in matter to vibrate which in turn cause friction and produces heat. This heating effect of microwaves does present a risk to living tissue.

2.3. Uses

2.3.1. The property of microwaves to cause molecules to vibrate is put to use to cook food in microwave ovens. In a microwave oven the microwaves are produced by a device called a Magnetron. These produce microwaves of a longer wavelength (approximately 10 to 20 cm). The microwaves are absorbed by the water and the fat molecules in the food heating them up from inside thereby cooking the food. Microwaves are not absorbed by dry materials such as glass and ceramics. The food is placed on a turntable to ensure the even distribution of the microwaves to allow the food to be cooked evenly. The metal casing of the microwave oven ensures all the microwaves are reflected back into the oven and the door has a wire mesh over the window which serves the same purpose. Microwaves can penetrate clouds, light rain, snow, haze and smoke. This makes them good for transmitting information from one place to another. Microwaves can be focussed into highly directional beams using parabolic dish antennas. These beams can be directed like a searchlight to a receiving aerial based on the Earth or to a satellite orbiting the Earth. Microwaves are the principle carriers of telegraphic data transmission (mobile phones) and also carry television transmissions.

3. Infra-red waves

3.1. Characteristics

3.1.1. Wavelength 10−5 meters

3.1.2. Frequency 4 x 1014 Hertz

3.1.3. Energy 10−1 Electron Volts

3.2. Description

3.2.1. All objects above the temperature of absolute zero (-273°C) emit infra-red radiation. In other words all warm objects give off infra-red rays. Infra-red radiations cannot be seen by the human eye but their effects can be sense by the skin as warmth.

3.3. Uses

3.3.1. Thermal imaging cameras make use of infra-red radiations emitted from objects to form an image. These are used by firemen to detect people where visibility is severely reduced by smoke. Police also use thermal imaging cameras to track criminal during the night. Thermal imaging cameras are also used to produce thermographs of objects so the heat loss from them can be studied. For example a thermograph of a house can give information about where the main areas of heat loss are therefore ensuring the correct areas are insulated. Infrared waves are also used as a source for carrier signals in fibre optics. Burglar alarms use sensors which detect the infra-red rays given off by intruders.

4. Visible Light

4.1. Characteristics

4.1.1. Wavelength 10−7 meters

4.1.2. Frequency 7.5 x 1014 Hertz

4.1.3. Energy 101 Electron Volts

4.2. Description

4.2.1. This is the small part of the electromagnetic spectrum that is detectable by the human eye. All objects with enough heat to glow emit light waves. The sun is the main source of light. Light bulbs work on the heating effect caused by electrical resistance in a filament lamp to cause it to glow and emit light. White light is made up of a mixture of colours. This spectrum of colours making up white light can be viewed when light is dispersed such as in a rainbow. The colours, in order are red, orange, yellow, green, blue, indigo and violet.

4.3. Uses

4.3.1. Human sight makes use of the wavelengths from visible light, thus we need light in order to see. Light plays a critical role in communication systems. Lighthouses use light to communicate the potential hazards along a stretch of coastline. Morse code between ships during radio silence can be achieved using a flash light. Transmitting light through air has setbacks in that the transmitter and receiver must be in view of each other. Also light waves are absorbed by rain, fog and other bad weather conditions. These setbacks were resolved with the advent of optical fibres. Optical fibres are made from very pure glass and allow light waves carrying information to travel through them using the principle of total internal reflection. The information the light waves carry is digital and is in the form of 1’s and 0’s. As the light wave carries a digital signal, it is of high quality and does not get weaker over long distances. Light waves are therefore used to carry vast amount of information at high speeds through optical fibre systems making the extremely important in the field of communications.

5. Ultraviolet

5.1. Characteristics

5.1.1. Wavelength 10−8 meters

5.1.2. Frequency 1016 Hertz

5.1.3. Energy 102 Electron Volts

5.2. Description

5.2.1. Ultraviolet radiation is produced by hot objects such as the sun or by the high temperature sparks produced during electric welding. Ultraviolet rays have less energetic photons compared to gamma rays and x-rays and a lower penetration power. Their effect on humans is therefore limited to the skin. Exposure to ultraviolet rays can cause a suntan (pigmentation of the skin) and sunburn. At high levels of exposure skin cancer can result and damage to the retina. This why sunscreen and glasses with ultraviolet protection are important. Fortunately most of the ultraviolet radiation in sunlight is absorbed by the oxygen in the ozone layer of the Earth’s atmosphere.

5.3. Uses

5.3.1. Ultraviolet is used in detecting forged bank notes – forged notes glow differently in ultraviolet light. Security pens for marking goods contain a special ink which only shows up under ultraviolet light. Ultraviolet has positive effects on the human body as it stimulates the production of vitamin D. It is used in the field of medicine for phototherapy in the treatment of some skin disorders. Ultraviolet radiations kill microbes and are used in the sterilisation of surgical equipment. Fluorescent lamps make use of ultraviolet radiations. When an electric current passes through a mercury vapour ultraviolet rays are produce. These rays collide with fluorescent powder on the inside of the tube making them fluoresce and converting the energy to visible light. Fluorescent lamps are more efficient than ordinary filament lamps.

6. X-ray

6.1. Characteristics

6.1.1. Wavelength 10−10 meters

6.1.2. Frequency 1018 Hertz

6.1.3. Energy 105 Electron Volts

6.2. Description

6.2.1. X-rays are produced from the collision of high speed electrons with metals. With a high frequency and small wavelength the high energy photons associated with X-rays enables them to penetrate most materials. X-rays are also ionising radiations which makes them dangerous as they can cause biological changes in living cells.

6.3. Uses

6.3.1. X-rays are mainly used in the field of medicine. They are used to produce images of bones and teeth vital for diagnosis and treatment. By placing a photographic film underneath the area of interest and directing a beam of x-rays an image is produced on the film. Parts of the body where the x-rays pass through easily are shown up as dark areas on the film. Where the x-rays find it difficult to penetrate such as bones or teeth shown up as lighter areas on the film. Like gamma rays the ionising potential of x-rays can also be used in the treatment of cancer. X-rays are also used in airports to check baggage and in industry as a quality control tool for e.g. to check packaged food do not contain metal or stones

7. Gamma Rays

7.1. Uses

7.1.1. The ionising nature of gamma rays has been used by medicine to its advantage. By carefully directing and controlling a beam of gamma radiation onto cancer cells they can be destroyed and their development controlled. Gamma rays are used to sterilise food and hospital equipment. Gamma rays kill bacteria and mould in food prolonging its shelf life.

7.2. Description

7.2.1. Gamma rays have the smallest wavelength and their photons have the most energy of all the waves in the electromagnetic spectrum. They are generated by the decay of radioactive atoms and nuclear explosions. The high energy of gamma ray photons means they can pass through most things. Gamma rays are a form of ionising radiation, which means that when they pass through matter they pass on their energy to electrons in the atoms they hit. This makes them dangerous as they can ionise atoms in the body thereby damaging and killing cells. If the DNA in a cell is damaged by gamma radiation it can mutate and cause cancer.

7.3. Characteristics

7.3.1. Energy 107 Electron Volts

7.3.2. Frequency 1020 Hertz

7.3.3. Wavelength 10−12 meters
