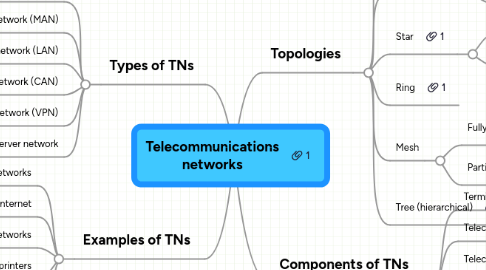

Telecommunications networks by Mind Map: Telecommunications networks

1. Topologies

1.1. Line (point-to-point)

1.1.1. Permanent

1.1.2. Switched

1.2. Bus

1.2.1. Distributed

1.2.2. Linear

1.3. Star

1.3.1. Distributed

1.3.2. Extended

1.4. Ring

1.5. Mesh

1.5.1. Fully connected

1.5.2. Partially connected

1.6. Tree (hierarchical)

2. Types of TNs

2.1. Wide area network (WAN)

2.2. Metropolitan area network (MAN)

2.3. Local area network (LAN)

2.4. Campus area network (CAN)

2.5. Virtual private network (VPN)

2.6. The client server network

3. Components of TNs

3.1. Terminals

3.2. Telecommunications processors

3.3. Telecommunications channels

3.4. Computers

3.5. Telecommunications control software

4. Examples of TNs

4.1. Computer networks

4.2. Internet

4.3. Telephone networks

4.4. Teleprinters

4.5. Aircraft Communications Addressing and Reporting System
