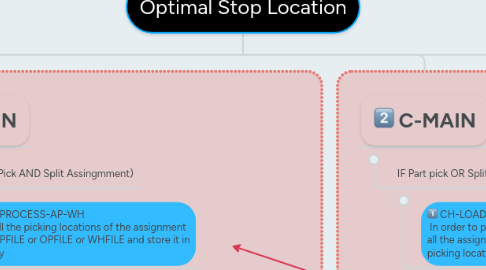

Optimal Stop Location by Mind Map: Optimal Stop Location

1. B-INITIALISE

1.1. BA-RETRIEVE Receives assignment nos. and type of assignemt from calling program(PP08/PP09/PP12/LM43)

1.2. BB-CHECK-PBS-CHAMBER Read DCMX T1 R15, to find if the Assingmnet being processed belongs to PBS chamber or not

1.3. BC-OPTIMAL-STOP-FLAG Read DCMX T1 R5 to find out the value of Optimal Stop Location Flag

1.4. BD-GET-LCML-T91-DIA If optimal stop location flag is set to "Y" or "S" read LCML T91 to get optimal stop location diameter

2. C-MAIN

2.1. IF NOT( Part Pick AND Split Assingmment)

2.1.1. CA-PROCESS-AP-WH Read all the picking locations of the assignment from APFILE or OPFILE or WHFILE and store it in an array

2.1.1.1. CBA-SORT-APFILE Sort the locations in an ascending order

2.1.1.2. CD-TO-FIND-OPT-STOP-LOC

2.1.1.2.1. CDA-TO-FIND-AISLE-RANGE                         Read the picking locations and find outs in which aisle range the location is falling

2.1.1.2.2. CDB-CALCULATE-DISTANCE Calculates distance between two consecutive  picking locations to find out if the picking locations are in the same aisle and distance b/w them is less than Optimal Stop Location Diameter

2.1.1.2.3. CDC-FIND-OSL Tries to find out the Optimal Location b/w the first reference point (first location) and the last reference point(Last location within the same aisle and optimal diameter)

2.1.1.3. CF-LINK-TO-LU01 Links LU01 program to Transmit data from PP15 to another program and then returns the control back to PP15.

3. C-MAIN

3.1. IF Part pick OR Split Assingnmnent

3.1.1. CH-LOAD-ALL-ASSIGN  In order to process Multiple assignments store all the assignments in an array along with the picking location of each one.

3.1.2. CI-PROCESS-ASSIGN works out optimal stop location for each assignment by taking one at a time and do in loop until all the assignment captured in step CH-LOAD-ALL-ASSIGN gets over. It calls section CA-PROCESS-AP-WH.

4. EXEC CICS RETURN END-EXEC.
