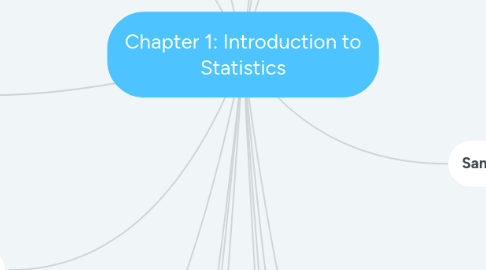

Chapter 1: Introduction to Statistics par Mind Map: Chapter 1: Introduction to Statistics

1. Population VS Sample

1.1. Population

1.1.1. Consists of all elements -- individuals, items, or objects -- whose characteristics are being studied

1.2. Sample

1.2.1. A portion of the population selected for study

2. Sources of data

2.1. Internal sources

2.1.1. Data taken from the records of the organization itself, such as a company’s personnel files, accounting records etc

2.2. External sources

2.2.1. Data taken from the sources outside the organization

2.2.2. Consists of

2.2.2.1. Primary data

2.2.2.1.1. Data that are published or released by the same organization that collected them.

2.2.2.2. Secondary data

2.2.2.2.1. Data that are published by an organization but the data are collected by other organization

2.3. Surveys and experiments

3. Sample Surveys and Sampling Techniques

3.1. Survey

3.1.1. The collection of information from the elements of a population or a sample

3.2. Census

3.2.1. A survey that includes every member of the population

3.3. Sample Survey

3.3.1. A survey that includes elements of a sample

4. Methods of survey

4.1. Observation

4.1.1. Decisions concerning local traffic flow are based on observations of flow made by video cameras or teams of observers

4.2. Questionnaire

4.2.1. Face-to-face interview

4.2.2. By post

4.2.3. By phone

5. Sampling and Nonsampling errors

5.1. Sampling errors

5.1.1. the difference between the result obtained from a sample survey and the result that would have been obtained if the whole population had been included in the survey

5.2. Nonsampling errors

5.2.1. The errors that occur in the collection, recording, and tabulation of the data

5.2.2. Examples

5.2.2.1. Response error

5.2.2.2. Selection error

5.2.2.3. Nonresponse error

5.2.2.4. Voluntary response error

6. Type of variables and data

6.1. Quantitative variable

6.1.1. A variable whose values can be measured numerically

6.1.2. Types

6.1.2.1. Discrete variable

6.1.2.1.1. A variable whose values are countable and usually integer-valued.

6.1.2.1.2. Can assume only certain values with no intermediate values.

6.1.2.2. Continuous variable

6.1.2.2.1. A variable whose values cannot take exact value.

6.1.2.2.2. Assume any numerical value over a certain interval or intervals.

6.2. Qualitative or Categorical variable

6.2.1. A variable that cannot assume a numerical value but can be classified or ranked into two or more nonnumeric categories.

6.2.2. Types

6.2.2.1. Nominal variable

6.2.2.1.1. Defined categories

6.2.2.2. Ordinal variable

6.2.2.2.1. Ordered categories

7. Cross-Section Data VS Time-Series Data

7.1. Cross-section data

7.1.1. Data collected on different elements at the same point in time or for the same period of time.

7.2. Time-series data

7.2.1. Data collected on the same element for the same variable at different points in time or for different periods of time.

8. Pilot study / survey

8.1. Carried out before the real survey in order to test the questionnaire

8.2. The aim is to find and overcome any difficulties before using the real questionnaire.

9. Definition of Statistics

9.1. Numerical facts

9.2. The field or discipline of study

9.2.1. a science of collecting, analyzing, presenting and interpreting data and draw conclusions from the data

10. Types of statistics

10.1. Descriptive Statistics

10.1.1. Consists of methods for organizing, displaying, and describing data by using tables, graphs, and summary measures

10.1.2. Deals with the description and analysis of a given group of data

10.2. Inductive Statistics

10.2.1. Consists of methods that use sample results to make decisions or predictions about a population

10.2.2. Deals with the problems of making inferences or drawing conclusions about population based on information obtained from the samples taken from the population

11. Why Sample?

11.1. Save time

11.2. Save cost

11.3. Impossibility of conducting a census

12. Samples and types of samples

12.1. Probability/random samples

12.1.1. Simple Random Sampling

12.1.1.1. Every indidividual or item from the frame have the equally chance to be selected

12.1.2. Systematic Random Sampling

12.1.2.1. Decide on sample size n

12.1.2.2. Divide frame of N individuals into k groups of individuals

12.1.2.3. Randomly select one individual from the 1st group

12.1.2.4. Select k-th individuals afterwards

12.1.3. Stratified Random Sampling

12.1.3.1. Divide population into 2 or more strata according to some common characteristics

12.1.3.2. A simple random sample is selected from each strata

12.1.3.3. Samples are combined into one

12.1.4. Cluster Sampling

12.1.4.1. Population is divided into several clusters, each representative of the population

12.1.4.2. A simple random sample of clusters is selected

12.1.4.3. All items in the selected clusters can be used, or items can be chosen from a cluster using another probability sampling technique

12.2. Non Probability/Non-Random Samples

12.2.1. Convenience

12.2.1.1. the most accessible members of the population are selected

12.2.2. Judgement

12.2.2.1. the members are selected from the population based on the judgment or prior knowledge of an expert

13. Basic Terms

13.1. Element Or Member

13.1.1. A specific subject or object about which the information is collected.

13.2. Variable

13.2.1. A characteristic under study that assumes different values for different elements.

13.3. Observation or measurement

13.3.1. The value of a variable for an element.

13.4. Data Set

13.4.1. A collection of observations on one or more variables.

14. Measurement scales

14.1. Nominal Scale

14.1.1. Classifies data into distinct categories without ranking

14.2. Ordinal Scale

14.2.1. Classifies data into distinct categories without ranking

14.3. Interval Scale

14.3.1. Ordered scale in which the difference between measurements is a meaningful quantity but the measurements doesn't have a true zero point

14.4. Ratio Scale

14.4.1. Ordered scale in which the difference between measurements is a meaningful quantity and the measurements have a true zero point

15. Steps in statistical investigation

15.1. State the problem / study clearly

15.2. Preparation of questionnaire

15.3. Selection of the sample (sampling)

15.4. Data collection

15.5. Editing the questionnaire

15.6. Organization and presentation of data

15.7. Analysis and interpretation of data

15.8. Report writing

16. Questionnaires

16.1. The design of questionnaire

16.1.1. Consists of 2 parts.

16.1.1.1. The first part requires the details of the respondent

16.1.1.2. The second part consists of the questions related to the investigation

16.2. The characteristics of a good questionnaire

16.2.1. Questions should be short and simple

16.2.2. Questions should be free from unfamiliar words

16.2.3. Leading questions (questions that guide to the answer) should be avoided

16.2.4. Questions should not require any calculations to be made

16.2.5. If possible, the questions will need the precise answer

16.2.6. An objective question is preferable to a subjective question
