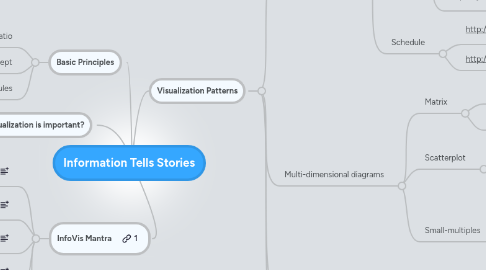

Information Tells Stories by Mind Map: Information Tells Stories
0.0 stars - reviews range from 0 to 5

Information Tells Stories

InfoVis Mantra

Select and Filter

“Mark something as interesting” • Mark items of interest to keep track • Seem to work as a preceding action to subsequent operations.

Reconfigure

“Show me a different arrangement” • Provide different perspectives by changing the spatial arrangement of representation e.g., • Sorting and rearranging columns in TableLens • Changing the attributes in a scatter plot • The baseline adjustment feature in Stacked Histogram

http://www.minglebee.com/gp/

Encode

“Show me a different representation” • Change visual appearances e.g., • Changing color encoding • Changing size • Changing orientation • Changing font • Changing shape

Zoom (overview and details)

“Show me more or less detail” • Adjust the level of abstraction (overview and details) e.g., • Unfolding sub-categories in an interactive pie chart • Drill-down in Treemap

Connect

“Show me related items” • highlight associations and relationships • show hidden data items that are relevant to a specified item

Why visualization is important?

Cholera Epidemic Example

Visualization Patterns

Timeline Diagrams

Map + Flow, http://upload.wikimedia.org/wikipedia/commons/2/29/Minard.png, http://www.nytimes.com/imagepages/2009/06/02/sports/03marathon.grafic.html

Flow, http://www.nytimes.com/imagepages/2008/02/24/business/24METRIC_GRAPHIC.html, http://plan.tpondemand.com/restui/tpview.aspx?acid=CDF8D2947CC1C79BCF93FD870B4D7FB5#userstory/39379||{"tab":"implementationHistory"}, http://plan.tpondemand.com/restui/tpview.aspx?acid=CDF8D2947CC1C79BCF93FD870B4D7FB5#userstory/41096||{"tab":"implementationHistory"}, http://synapticnulship.com/blog/wp-content/uploads/2010/09/movie_narrative_charts_large.png

Schedule, http://mbostock.github.com/protovis/ex/caltrain.html, http://www.nytimes.com/imagepages/2007/03/17/nyregion/nyregionspecial2/20070318_TRAIN_GRAPHIC.html

Multi-dimensional diagrams

Matrix, http://eurheartj.oxfordjournals.org/content/early/2007/08/28/eurheartj.ehm316/F4.large.jpg, Board+

Scatterplot, http://www.nytimes.com/packages/khtml/2006/04/02/business/20060402_SECTOR_GRAPHIC.html, http://www.nytimes.com/interactive/2011/01/02/business/20110102-metrics-graphic.html

Small-multiples, http://www.nytimes.com/interactive/2008/08/16/sports/olympics/20080816_world_records.html, http://ieg.ifs.tuwien.ac.at/~aigner/teaching/ws06/infovis_ue/img/technique-images/full-size/tufte_patient_status2.jpg, http://mbostock.github.com/protovis/ex/hotel.html

Maps

http://www.nytimes.com/interactive/2009/03/10/us/20090310-immigration-explorer.html

Networks

TreeMap, http://www.smartmoney.com/map-of-the-market/

Mindmap

Basic Principles

Data to Ink Ratio

Image Concept

Levels of Reading

Legibility Rules
