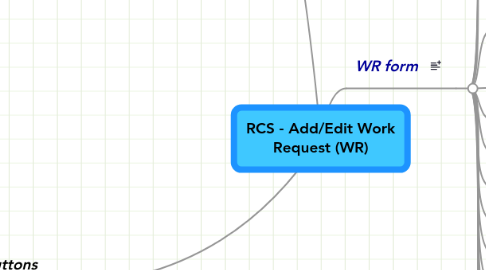

RCS - Add/Edit Work Request (WR) by Mind Map: RCS - Add/Edit Work Request (WR)

1. WR form

1.1. 001 - Generate WR #

1.2. 002 - Generate Subtask #

1.3. 003 - Populate the Flight drop down list box (ddlb)

1.4. Multiple Dependent DDLB

1.4.1. 004 - Contract ddlb

1.4.2. 005 - Program Elements ddlb

1.4.3. 006 - Ops Center ddlb

1.4.4. 007 - Faciliity ddlb

1.4.5. 008 - Charge number ddlb

1.4.6. 009 - Charge number description ddlb

1.5. 2 Selects Related

1.5.1. 010 - Product Type ddlb

1.5.2. 011 - Product Class ddlb

1.6. 012 - Product Name ddlb

1.7. 013 - Product title textbox

1.8. 014 - Customer Name ddlb

1.9. 015 - Customer Role ddlb

1.10. 016 - Support Dept ddlb

1.11. 017 - Estimated Pages textbox

1.12. 018 - Input Pages textbox

1.13. 019 - Output Pages textbox

1.14. 020 - Date Created - auto generated - label

1.15. 021 - Final Due Date - textbox with js calendar attached

1.16. 022 - Final Due Time - textbox with js calendar attached

1.17. 023 - Work Request Date Close - this should be auto generated when the Close button is clicked

1.18. 024 - Instruction Comments

2. High Level View of how this form works

2.1. User initiates a new WR

2.2. Fills required fields on the form

2.3. Add a review schedule if necessary

2.4. From this screen they can create subtasks. A complete WR must be completed before a subtask can be initiated

2.5. From this screeen they can close the WR. Closing a WR will close all subtasks associated

2.6. User can delete the WR if necessary. Delete does not actually delete but changes the status to inactive - verify that this field in the tblWorkRequest is created

2.7. SubTask Form is the WR form with some fields disabled

3. WR Form Buttons

3.1. 001 - Save - Updates the current WR

3.2. 002 - Print - Provides the user with a printer friendly version of the WR and the review schedule

3.3. 003 - Add Review Schedule

3.4. 004 - Close - Closes the WR and all associated subtasks. Adds a close status to the tblWorkRequest - Make sure this field exists

3.5. 005 - Create subtask - cannot be created unless the WR has all required fields populated

3.5.1. ADD SubTask Form

3.6. Review Schedule Form

3.6.1. Displays all review schedules associated to a WR

3.6.1.1. Status Start Date

3.6.1.2. Schedule Status

3.6.1.3. Plan to Customer Date

3.6.1.4. To Customer Date

3.6.2. Buttons

3.6.2.1. Add Review Schedule

3.6.2.1.1. Form

3.6.2.1.2. Buttons

3.6.2.2. Edit
