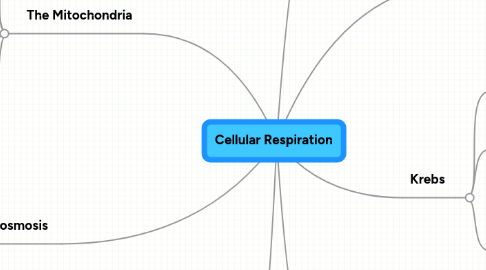

Cellular Respiration 作者: Mind Map: Cellular Respiration

1. The Mitochondria

1.1. Outer membrane

1.2. Intermembrane space

1.2.1. H+ concentration

1.3. Inner membrane

1.3.1. folds

1.3.1.1. cristae

1.3.1.1.1. pl.

1.3.1.2. crista

1.3.1.2.1. sing.

1.3.2. Chemiosmosis

1.4. Matrix

1.4.1. Krebs

2. Chemiosmosis

2.1. 1. Electron Transport Chain

2.1.1. NADH/FADH2 oxidized

2.1.2. 02

2.1.2.1. final oxidizing agent

2.1.2.2. forms H20

2.1.2.2.1. with H+

2.2. 2. Proton pump

2.2.1. H+ transported to intermembrane compartment

2.3. 3. ATP synthase

2.3.1. i. H+ flows back to matrix

2.3.1.1. ENERGY

2.3.2. ii. ADP Phosphorized

2.3.2.1. ATP formed

3. Oxidative Phosphorylation

3.1. Location

3.1.1. Cristae

3.2. Goal

3.2.1. Get ATP from NADH/FADH2

3.3. How?

3.3.1. Chemiosmosis

3.4. Products

3.4.1. ATP

3.4.1.1. 32

4. Pathways

4.1. i. Glycolysis

4.1.1. ii. Krebs

4.1.1.1. iii. Oxidative Phosphorylation

4.1.2. ii. Alcohol Fermentation

4.1.3. ii. Lactic Acid Fermentation

5. Glycolysis

5.1. Location

5.1.1. Cytosol

5.2. Products

5.2.1. pyruvate

5.2.1.1. 2

5.2.2. NADH

5.2.2.1. 2

5.2.3. ATP

5.2.3.1. 4

6. Krebs

6.1. Location

6.2. Goal

6.2.1. Make

6.2.1.1. NADH

6.2.1.2. FADH2

6.2.2. Matrix

6.3. Products

6.3.1. NADH

6.3.1.1. 3

6.3.2. FADH2

6.3.2.1. 1

6.3.3. ATP

6.3.3.1. 1

6.3.4. CO2

6.3.4.1. 1

7. Anaerobic

7.1. Alcohol

7.2. Lactic Acid
