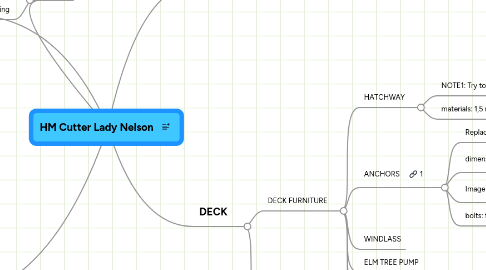

HM Cutter Lady Nelson by Mind Map: HM Cutter Lady Nelson

1. DECK

1.1. DECK FURNITURE

1.1.1. HATCHWAY

1.1.1.1. NOTE1: Try to design a more detailed one using walnut planks, keeping the same overall measures

1.1.1.2. materials: 1,5 mm plywood, 1 mm walnut planks, copper wire, insulated tape / black paper

1.1.2. ANCHORS

1.1.2.1. Replaced metal cast stock with a wooden one made with two walnut planks

1.1.2.2. dimensions (derived from Steel): lenght of shanck 35 mm - diameter of ring 4 mm - lenght of stock 37 mm - middle opening about 0.5 mm

1.1.2.3. Image (steel)

1.1.2.4. bolts: the pattern of treenails and bolts is not symmetrical

1.1.3. WINDLASS

1.1.4. ELM TREE PUMP

1.1.5. ENTRY LADDER: found one on a 10-guns cutter model at NMM. Check picture.

1.1.6. BINNACLE: cfr. post on MSW

1.2. DECK PLANKING

2. hull

2.1. frames

2.2. first planking

2.3. second planking

3. masting

4. rigging

5. References

5.1. NMM cargo brig

5.2. Alert JP
