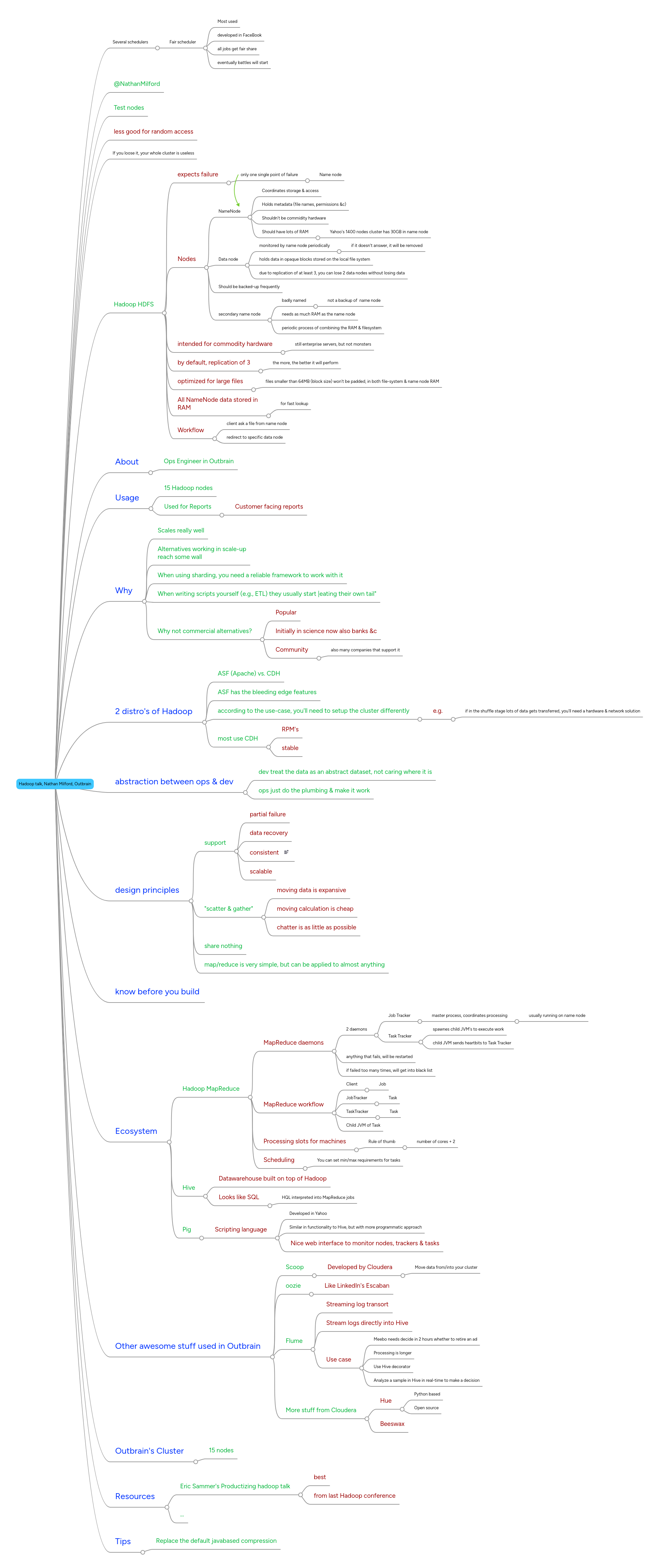

Hadoop talk, Nathan Milford, Outbrain
About
Ops Engineer in Outbrain
@NathanMilford
Usage
15 Hadoop nodes
Used for Reports
Customer facing reports
Why
Scales really well
Alternatives working in scale-up reach some wall
When using sharding, you need a reliable framework to work with it
When writing scripts yourself (e.g., ETL) they usually start |eating their own tail"
Why not commercial alternatives?
Popular
Initially in science now also banks &c
Community, also many companies that support it
2 distro's of Hadoop
ASF (Apache) vs. CDH
ASF has the bleeding edge features
most use CDH
RPM's
stable
abstraction between ops & dev
dev treat the data as an abstract dataset, not caring where it is
ops just do the plumbing & make it work
design principles
support
partial failure
data recovery
consistent
scalable
"scatter & gather"
moving data is expansive
moving calculation is cheap
chatter is as little as possible
share nothing
map/reduce is very simple, but can be applied to almost anything
know before you build
according to the use-case, you'll need to setup the cluster differently
e.g., if in the shuffle stage lots of data gets transferred, you'll need a hardware & network solution
Ecosystem
Hadoop HDFS
expects failure, only one single point of failure, Name node, If you loose it, your whole cluster is useless
Nodes, NameNode, Coordinates storage & access, Holds metadata (file names, permissions &c), Shouldn't be commidity hardware, Should have lots of RAM, Yahoo's 1400 nodes cluster has 30GB in name node, Should be backed-up frequently, Data node, monitored by name node periodically, if it doesn't answer, it will be removed, holds data in opaque blocks stored on the local file system, due to replication of at least 3, you can lose 2 data nodes without losing data, secondary name node, badly named, not a backup of name node, needs as much RAM as the name node, periodic process of combining the RAM & filesystem
intended for commodity hardware, still enterprise servers, but not monsters
by default, replication of 3, the more, the better it will perform
optimized for large files, files smaller than 64MB (block size) won't be padded, in both file-system & name node RAM
less good for random access
All NameNode data stored in RAM, for fast lookup
Workflow, client ask a file from name node, redirect to specific data node
Hadoop MapReduce
MapReduce daemons, 2 daemons, Job Tracker, master process, coordinates processing, usually running on name node, Task Tracker, spawnes child JVM's to execute work, child JVM sends heartbits to Task Tracker, anything that fails, will be restarted, if failed too many times, will get into black list
MapReduce workflow, Client, Job, JobTracker, Task, TaskTracker, Task, Child JVM of Task
Processing slots for machines, Rule of thumb, number of cores + 2
Nice web interface to monitor nodes, trackers & tasks
Scheduling, Several schedulers, Fair scheduler, Most used, developed in FaceBook, all jobs get fair share, eventually battles will start, You can set min/max requirements for tasks
Hive
Datawarehouse built on top of Hadoop
Looks like SQL, HQL interpreted into MapReduce jobs
Pig
Scripting language, Developed in Yahoo, Similar in functionality to Hive, but with more programmatic approach
Other awesome stuff used in Outbrain
Scoop
Developed by Cloudera, Move data from/into your cluster
oozie
Like LinkedIn's Escaban
Flume
Streaming log transort
Stream logs directly into Hive
Use case, Meebo needs decide in 2 hours whether to retire an ad, Processing is longer, Use Hive decorator, Analyze a sample in Hive in real-time to make a decision
More stuff from Cloudera
Hue, Python based, Open source
Beeswax
Outbrain's Cluster
15 nodes
Test nodes
Resources
Eric Sammer's Productizing hadoop talk
best
from last Hadoop conference
