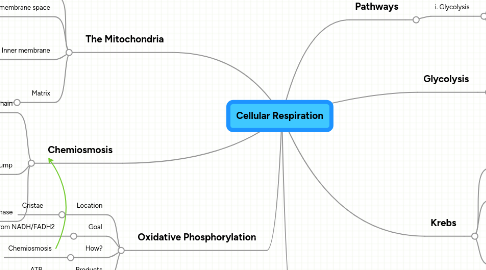

Cellular Respiration

Pathways

i. Glycolysis

ii. Krebs, iii. Oxidative Phosphorylation

ii. Alcohol Fermentation

ii. Lactic Acid Fermentation

The Mitochondria

Outer membrane

Intermembrane space

H+ concentration

Inner membrane

folds, cristae, pl., crista, sing.

Chemiosmosis

Matrix

Krebs

Glycolysis

Location

Cytosol

Goal

Breakdown glucose

Products

pyruvate, 2

NADH, 2

ATP, 4

Krebs

Location

Matrix

Goal

Make, NADH, FADH2

Products

NADH, 3

FADH2, 1

ATP, 1

CO2, 1

Oxidative Phosphorylation

Location

Cristae

Goal

Get ATP from NADH/FADH2

How?

Chemiosmosis

Products

ATP, 32

Chemiosmosis

1. Electron Transport Chain

NADH/FADH2 oxidized

02, final oxidizing agent, forms H20, with H+

2. Proton pump

creates pH/electric gradient

H+ transported to intermembrane compartment

3. ATP synthase

i. H+ flows back to matrix, ENERGY

ii. ADP Phosphorized, ATP formed

Anaerobic

Alcohol

Lactic Acid
