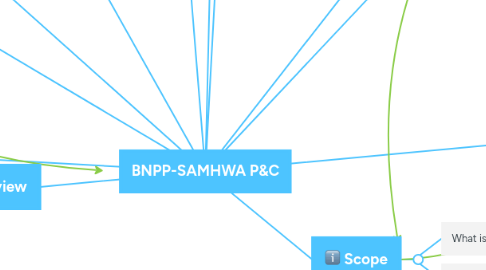

BNPP-SAMHWA P&C by Mind Map: BNPP-SAMHWA P&C

1. ITP

1.1. Inspection & Test Plan

1.1.1. NOTIFICATION

1.1.1.1. Inspection Report

2. Resources

2.1. Project Manager

2.2. Team Members

2.3. Budget

2.4. Assets

3. Scope

3.1. What is included

3.2. What is excluded

4. Schedule

4.1. Project Start

4.1.1. Project specifications

4.1.2. End User requirements

4.1.3. Action points sign-off

4.2. UNIT #1

4.2.1. Surface

4.2.2. Primer

4.2.3. Top coating

4.3. UNIT #2

4.3.1. Surface

4.3.2. Primer

4.3.3. Top coating

4.4. UNIT #3

4.4.1. Surface

4.4.2. Primer

4.4.3. Top coating

4.5. UNIT #4

4.5.1. Surface

4.5.2. Primer

4.5.3. Top coating

5. Constraints

5.1. Budget

5.1.1. Materials

5.1.2. Personnel

5.1.3. Services

5.1.4. Duration

5.2. Deadline

5.3. Requirements

6. Overview

6.1. Motivation

6.2. Goals

6.3. Deliverables

7. STOCK

7.1. PAINT material

7.2. Expendables

7.3. Etc.

8. Identification

8.1. ISO DRAWING

8.2. P&ID

8.3. BENTLEY

9. Punch list

9.1. Field Site Check up

9.1.1. Order to repair by touch up

9.1.1.1. reply to JV after fixing

9.1.2. reply inform not our scope

10. Coating system

10.1. Indoor

10.1.1. N-102

10.1.1.1. RCB

10.1.1.1.1. ZINC 11SG N(K)

10.1.1.1.2. CG 893 N(K)

10.1.1.1.3. CG 890 N(K)

10.1.2. N-105

10.1.2.1. SUPPORT

10.1.3. D-202

10.1.3.1. AUB CPB

10.1.3.1.1. ZINC 11SG N(K)

10.1.3.1.2. CG 893 N(K)

10.1.3.1.3. CG 890 N(K)

10.1.4. I-303

10.1.4.1. TGB YARD

10.1.4.1.1. CZ 11

10.1.4.1.2. CL 893 RCP

10.1.4.1.3. CL 801

10.1.5. I-309

10.1.5.1. TANK

10.1.5.1.1. CARBOMASTIC 14

10.1.5.1.2. CARBOMASTIC 14

10.2. Outdoor

10.2.1. I-304 OUTSIDE CARBON STEEL

10.2.1.1. CL 893 RCP

10.2.1.2. CL 893 RCP

10.2.1.3. CL 134K

10.2.2. I-313 COATING OF GALVANIZED STEEL

10.2.2.1. CL 893 RCP (SP)

10.2.2.2. CL 893 RCP

10.2.2.3. CL 134K

10.2.3. I-319 COATING OF STAINLESS STEEL

10.2.3.1. CL 893 RCP (SP)

10.2.3.2. CL 134K

11. Task Volumes

12. ManPower

12.1. HSE

12.2. PAINTER

12.3. HELPER
