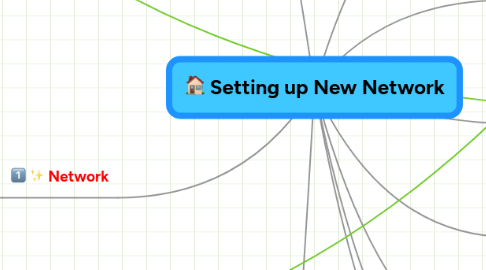

Setting up New Network by Mind Map: Setting up New Network
0.0 stars - 0 reviews range from 0 to 5

Setting up New Network

VSAT

Contract

Reading Technical Proposal

Internet Lines

Contract with SLC

Looking for a new service providers

Lease a new line for backup

SOFTWares

User softwares

SUN Accounting

Primavera

Hysys

Autocad 2009

Document Controller

HR management

Essential Software

Office 2003

Window XP Pro

Window Vista Pro

Anti-Virus

Acrobat Pro 8

...

System software

MDeamon server (Email Server), User Account

Operating System, Red Hat 5, Fedora, MS Server 2003, MS Server 2008, 32 or 64 bit

Hardware

System Devices

OldServer

New Server

Virtualization, VMWare, Xen, Pemu

User Devices

Computers, Desktop, Laptop, Language, English, French

Priters, Network Printer, Color, Black & White

USB

Ext HardDisk

Scanner

Telephone System

Purchasing new telephones

Extend new ext number by purchasing new PBX

Extensions (102 exts)

First Floor: 30

Second Floor: 31

Third Floor: 40

Forth floor: 1

Network

Designing

IP address, user computer address, Server computer address, Networking devices address, Printer address, 10.0.0.0/8, Localtion Address (ALGER/HMD), DHCP Pools, Server Pool (10.0.0.1 - 10.0.0.254), (GateWay)Firewall 10.0.0.1/8, (Mail)Email server 10.0.0.2/8, (DC)Active directory Server 10.0.0.3/8, (File)Window File shared server 10.0.0.4/8, (DB)Database 10.0.0.5/8, (WF)FTP and Web Server 10.0.0.6/8, (RIS)Remote Installation Server 10.0.0.7/8, Old Email server 10.0.0.8/8, User Device (10.0.2.1 - 10.0.4.254), Printer Pool (10.0.1.1 - 10.0.1.254), CPrinter01

If we have 02 location

What will we do if we have 2 location Alger & HMD

What type of WAN technologies, Lease Line, VPN, Folder synchronization Application

Network Devices

Switches, Giga SW, 100Mbps SW

Routers

Cabling, Who?

Computers Systems, Servers, Domain Name Controller server, DNS Service, WINS service, DNS relay to HMD, AD service, Create Group, Finance.BRS.com.dz, SS.BRS.com.dz(Support Service), ADMIN.ss.brs.dz(Admininstration and HR), PRO.ss.brs.dz(Procurement), IT.ss.Brs.dz(IT), SupplyChain, Field, SubSurface(Sub Surface), Planning, Development, HSE, Drilling, Visitors, OU, BRS.com.dz, New Email Server, MDeamon, Exchange, File server, HDCP Server, Backup server, Printer Server, Database Server, Firewall, Setting up operating system Fedora9, Version Fedora 9, Services, Squid 3.0 stable, Network bandwidth monition, Webmin, SSH, IPtables, DNAT Mail Server 10.0.0.2 => x.x.x.x, DNAT FTP and Web Server 10.0.0.5 => 81.52.168.173, DNAT Old Email Server 10.0.0.8 => 81.52.168.171, DNAT Radmin servers = > 81.52.168.171/173, VPN, IP Address, Local Address, 10.0.0.1/8, External Address, For Email: 81.52.168.171/29, For Internet: 81.52.168.173/29, For New Email : x.x.x.x/xx, IP phone, FTP & Web server, Remote Installation Server, HMD Server (DNS Relay), UPS, Old Email Server, Client (XP Pro), Joining domain, Freeze OS, List of vital software, Computer Checklist, User Information (User account), Setting Permisson, Add information

Domain Name registration

Best name

BRS.com.dz

BRSGroupement.com.dz

Another domainname.

Registration

Survey to get best name

IT Devices Management System

Purchasing IT Equipments

PR

PO

At least 03 Quotation

Invoice Processing

Electrical, Networking, telephony Cabling in alger office

Based on Civil design map

Find best solution of cabling

LINGO

Services for cabling

SLC

SARL burest info

Another service providers
