Android Studio 2.0: default project structure

First of a series of mind maps coming. The default android studio 2.0 presented visually and briefly explained. Detailed maps to come :)

Get Started. It's Free
or sign up with your email address
Rocket clouds

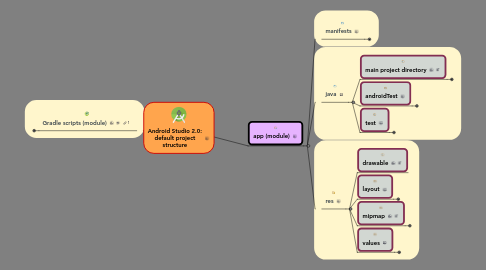

Android Studio 2.0: default project structure by Mind Map: Android Studio 2.0: default project structure

1. app (module)

1.1. manifests

1.1.1. AndroidManifest.xml

1.2. java

1.2.1. main project directory

1.2.1.1. MainActivity

1.2.2. androidTest

1.2.2.1. ApplicationTest

1.2.3. test

1.2.3.1. ExampleUnitTest

1.3. res

1.3.1. drawable

1.3.2. layout

1.3.2.1. activity_main.xml

1.3.3. mipmap

1.3.3.1. ic_launcher.png

1.3.3.1.1. ic_launcher.png (hdpi)

1.3.3.1.2. ic_launcher.png (mdpi)

1.3.3.1.3. ic_launcher.png (xhdpi)

1.3.3.1.4. ic_launcher.png (xxhdpi)

1.3.3.1.5. ic_launcher.png (xxxhdpi)

1.3.4. values

1.3.4.1. colors.xml

1.3.4.2. dimens.xml

1.3.4.2.1. dimens.xml

1.3.4.2.2. dimens.xml (w820dp)

1.3.4.3. strings.xml

1.3.4.4. styles.xml

2. Gradle scripts (module)

2.1. build.gradle (project)

2.2. build.gradle (module)

2.3. proguard-rules.pro

2.4. gradle.properties

2.5. settings.gradle

2.6. local.properties
